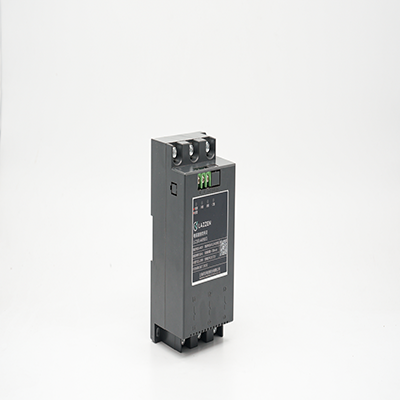

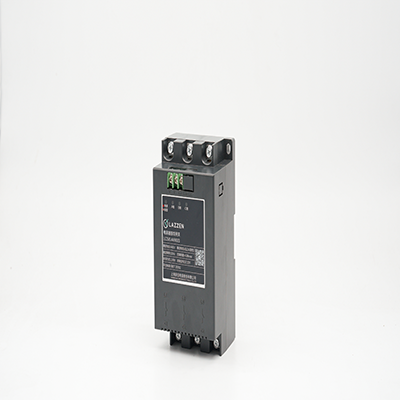

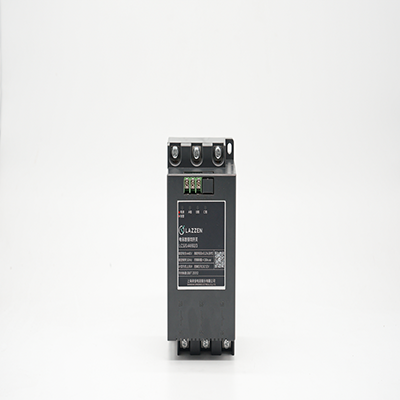

LCS
The LCS Capacitor Switching Switch supports switching of up to 50kVAR for individual or common compensation capacitors, featuring voltage zero-crossing switching-on and current zero-crossing switching-off, with no inrush current or arcing. It supports two control modes: 12V signal and serial communication, with over-temperature and phase-loss protection.
-
Rated Voltage: Phase 250V, Line 440V -
Voltage Range: Rated Voltage -15% to +20% -
Frequency Range: 50Hz -
Dynamic Response Time: ≤100ms -
Secondary Response Time: < 5 Seconds
