Electronic Accessories for Power Distribution

The DF-CAN (CAN Adapter Module) is designed as a simple and convenient networking accessory to support the product planning of intelligent molded case and air circuit breakers. Its structure references similar products on the market and integrates with LAZZEN's existing product series. Slave devices include: NDQ3H, NDW3, NDW1, NDW2, NDW1A, NDM

The DF-P9 Power Supply Module is designed as a 24VDC power supply module to support intelligent product planning. It converts AC input (110/220V/230VAC) to DC output (24VDC). The module achieves normal AC-to-DC conversion performance through four key sections: input circuit, control circuit, feedback circuit, and output circuit.

The DF-TTP Gateway converts communication interfaces (RS485 to Ethernet), enabling the transmission of low-voltage switchgear data to the host computer via Ethernet.

The DF-WIFI-BT Gateway enables communication interface conversion (RS485 to WIFI), allowing information from downstream switching devices to be transmitted wirelessly via WIFI to the host system for seamless interconnection. Slave devices include: NDQ3H, NDW3, NDM5E, NDM3E, DF-WK6, DF-SC66.

The DF-WK6 Temperature Alarm Module provides 6-channel real-time temperature monitoring and 6-channel DO output alarm functions. As an independent electronic accessory module, it is not limited to molded case circuit breakers but is also applicable to air circuit breakers, automatic transfer switches, and other products.

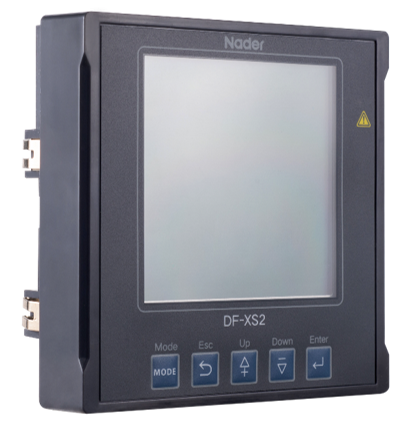

The DF-XS2 series display unit is compatible with NDW1A, NDW2, NDW3, NDW1A-W, NDW3E-W, and NDM5E series molded case circuit breakers, the DF-SC66 module, and the DF-WK6 temperature alarm module. It primarily displays parameter information such as current, voltage, frequency, power, and energy for NDW1A, NDW2, NDW3, NDW1A-W, NDW3E-W, and NDM5E serie

The DF-SC66 DIDO Module is designed for the LAZZEN Energy Management Platform System (Intelligent), primarily enabling 6-channel DI input detection and 6-channel DO output functions. This product is a standalone electronic accessory module, not limited to molded case products, but also applicable to air circuit breakers, automatic transfer switches
