Intelligent Modules and Accessories

The DF-P9 Power Module is designed as a 24VDC power supply module to support intelligent product planning. It converts AC input (110V/220V/230VAC) to DC output (24VDC). The power module achieves normal AC-to-DC conversion performance through four sections: input circuit, control circuit, feedback circuit, and output circuit.

The DF-SC66 DIDO Module is designed for the LAZZEN Energy Management Platform System (Intelligent), primarily providing 6 DI input detection and 6 DO output functions. This product is a standalone electronic accessory module, not limited to molded case products, but also applicable to air circuit breakers, automatic transfer switches, and other pro

The DF-CAN (CAN Adapter Module) is designed to support the intelligent molded case and air circuit breaker product roadmap. Referencing the structure of similar products and integrating with LAZZEN's existing product series, it is a simple and convenient networking accessory. Slave devices include: NDQ3H, NDW3, NDW1, NDW2, NDW1A, NDM5E, NDM3E,

The DF-TTP Gateway enables communication interface conversion (RS485 to Ethernet interface), allowing information from downstream switchgear devices to be transmitted to the host computer via Ethernet.

The DF-WIFI-BT Gateway enables communication interface conversion (RS485 to WIFI), allowing underlying switchgear device data to be transmitted wirelessly via WIFI to the host system for interconnection. Slave devices include: NDQ3H, NDW3, NDM5E, NDM3E, DF-WK6, DF-SC66.

The DF-WK6 Temperature Alarm Module provides 6-channel real-time temperature monitoring and 6-channel DO output alarm functionality. As a standalone electronic accessory module, it is not limited to molded case products but is also applicable to air circuit breakers, automatic transfer switches, and other products.

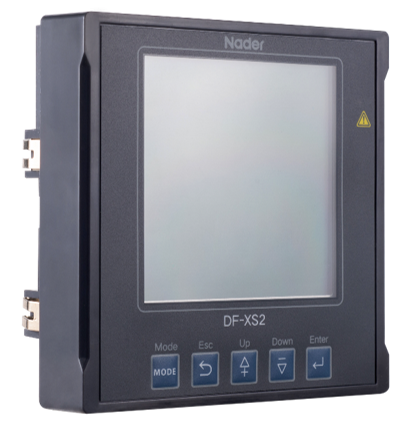

The DF-XS2 Series Display Unit is applicable to NDW1A, NDW2, NDW3, NDW1A-W, NDW3E-W, NDM5E Series Molded Case Circuit Breakers, the DF-SC66 Module, and the DF-WK6 Temperature Alarm Module. It primarily displays parameter information such as current, voltage, frequency, power, and energy for the NDW1A, NDW2, NDW3, NDW1A-W, NDW3E-W, and NDM5E Series
