LSCA

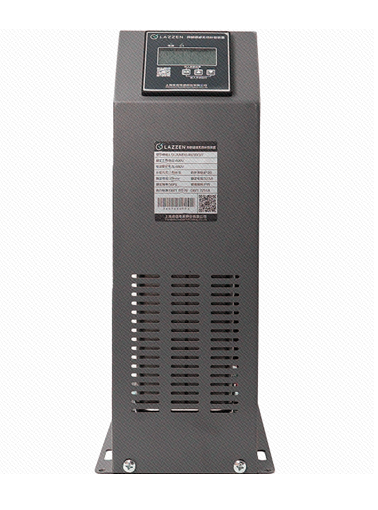

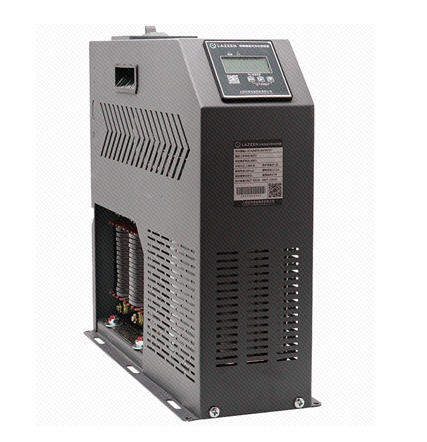

LSCA Harmonic Suppression Reactive Power Compensation Device supports common compensation up to 50kVAR and split-phase compensation up to 30kVAR. Built-in capacitors, switching modules, and reactors. Supports automatic networking with up to 32 units in parallel. Provides multiple protection functions including overvoltage, overtemperature, and harmonic protection.
-
Voltage Range: Line 400V+20%; Phase 230V+20% -
Signal Current: AC0～5A -
Rated Frequency: 50Hz±2Hz -
Dynamic Response Time: ≤1s -
Networking Units: Max 32
