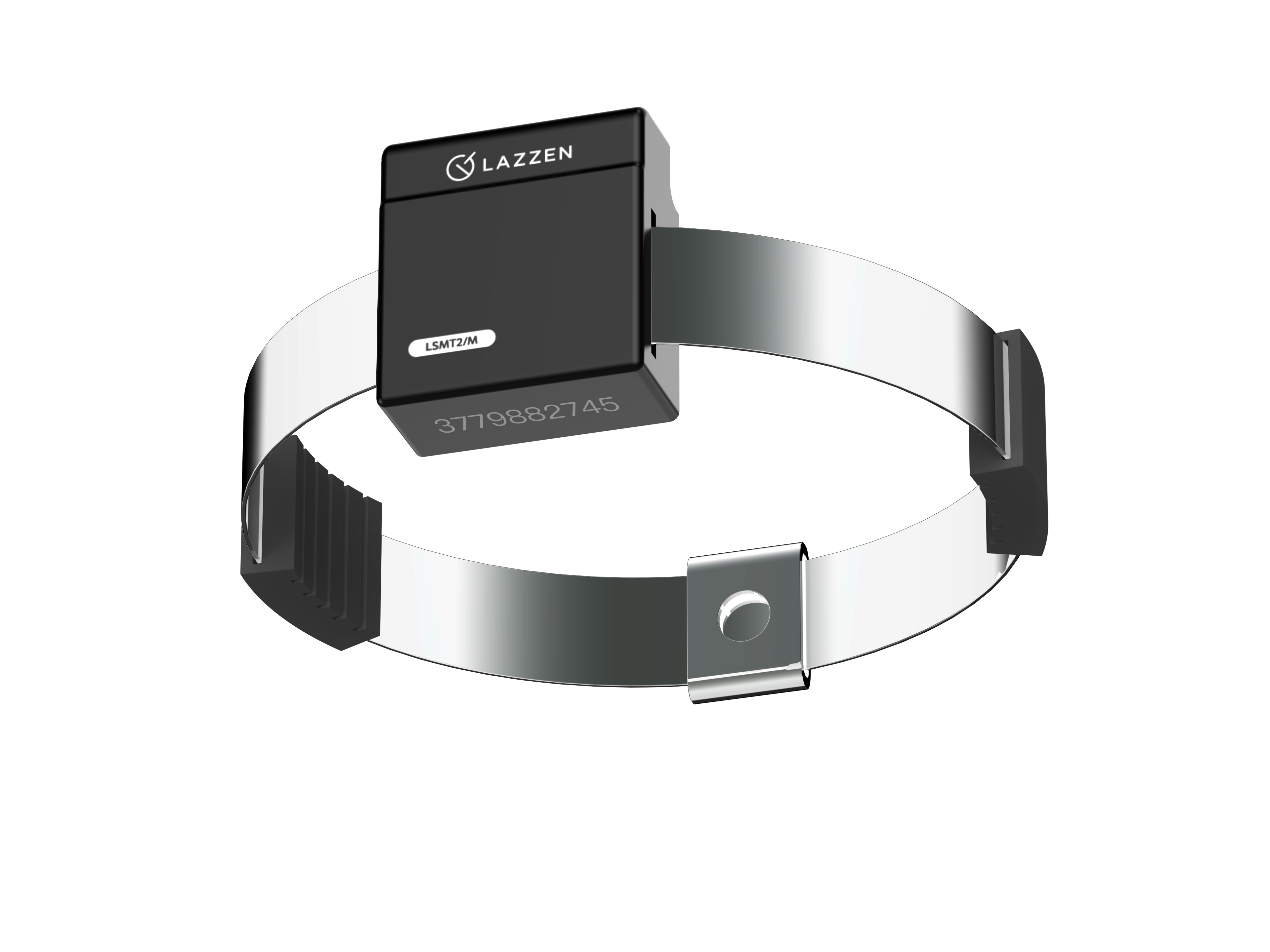

LSMT2/M
Wireless Passive Busbar Temperature Measurement for measuring the surface temperature of busbars and cables. Temperature measurement range: -40~+150°C. Wireless transmission distance up to 300 meters. Inductive power harvesting. Suitable for various distribution cabinets, distribution boxes, and pad-mounted transformers.
The LSMT2/M Online Inductive Passive Wireless Temperature Sensor is designed for real-time temperature monitoring of high-voltage equipment connection points in power systems, such as busbar connection points, switches, circuit breakers, main transformer bushing clamps, and high-voltage cable joints. It dynamically tracks and monitors temperature rise fault points, providing critical data support for power system operation. It offers multiple receiver options, providing users with various wireless data acquisition models for a fast, cable-free sensor network solution.
Compliant Standard: NB/T 42086-2016 Technical Requirements for Wireless Temperature Measurement Devices.
-
Temperature Measurement Range: -40～150°C -
Temperature Sampling Frequency: Default 10~30 Seconds (Random) -
Operating Power Supply: Inductive Power Harvesting -
Environmental Requirements for Sensor Installation Location
Voltage Level Requirement: ≤220KV
Primary Side Current: ≤5000A (If current exceeds 5000A, please contact the manufacturer's technical personnel for site evaluation) -
Communication Method: FSK
-
