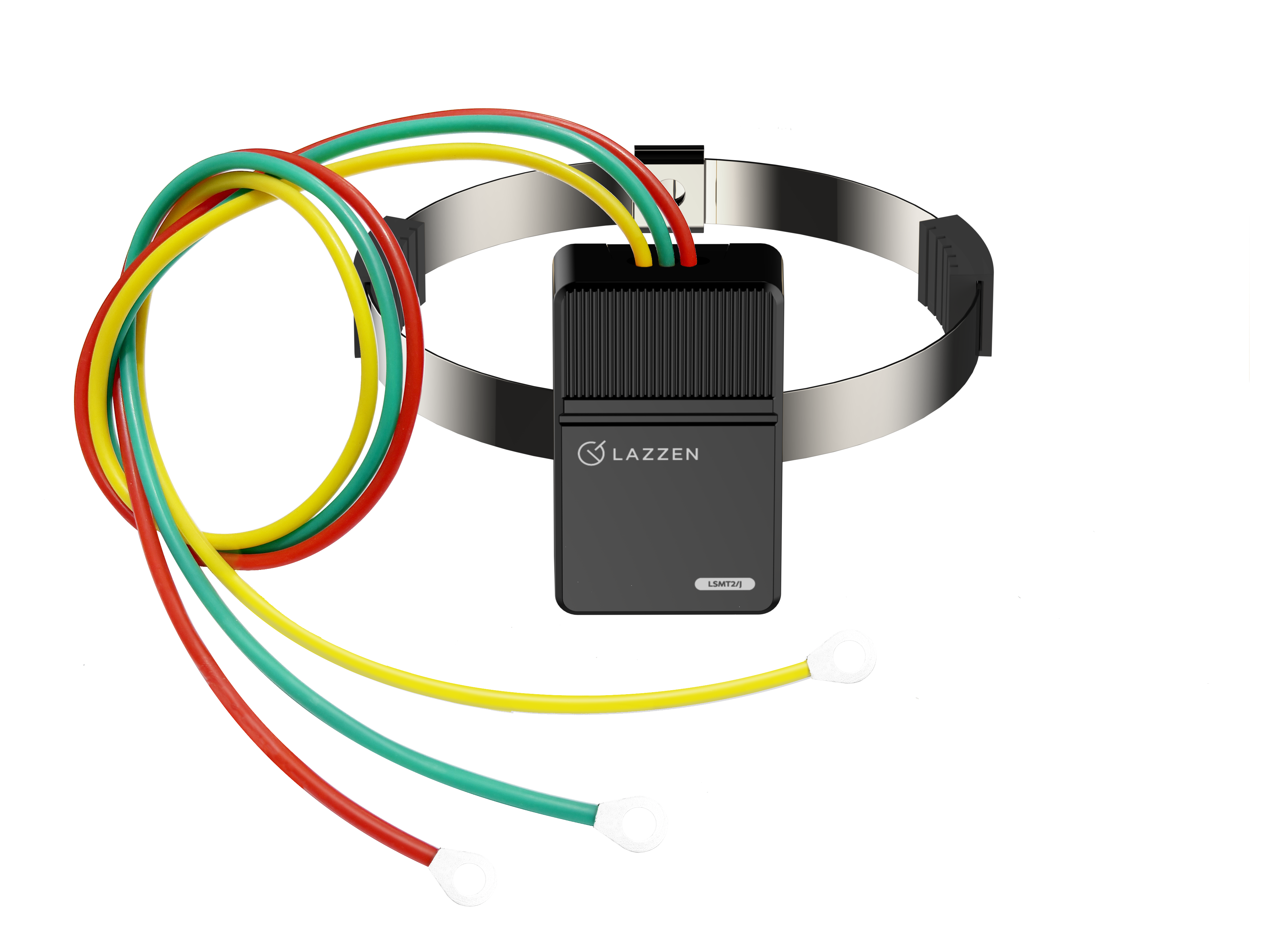

LSMT2/J

Wireless Passive Lap Joint Temperature Measurement, designed to measure the temperature of busbar lap joints and cable copper lug connections. Temperature measurement range: -40~+200°C. Wireless transmission distance up to 300 meters. Powered by inductive energy harvesting. Suitable for various distribution cabinets, distribution boxes, and pad-mounted transformers.

The LSMT2/J Passive Wireless Temperature Sensor is an online-powered sensor that measures three temperature points simultaneously. It offers a selection of receivers, providing users with diverse wireless data acquisition models for a quick, cable-free sensor network solution. Ideal for temperature monitoring of busbars, capacitor surfaces, and cable joints in AC220V, 380V, and 660V low-voltage systems.

Compliant Standard: NB/T 42086-2016 Technical Requirements for Wireless Temperature Measurement Devices.
