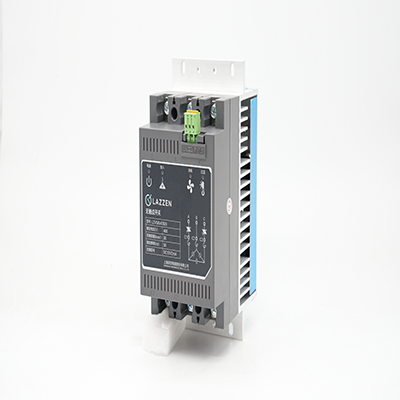

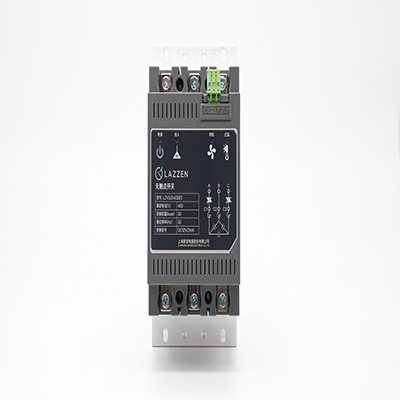

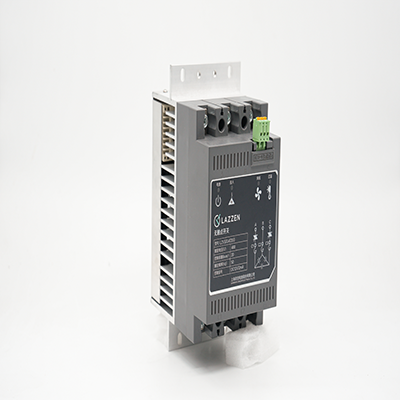

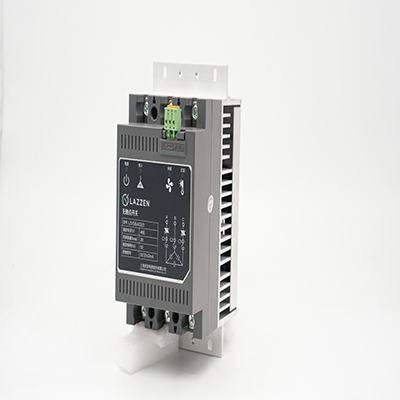

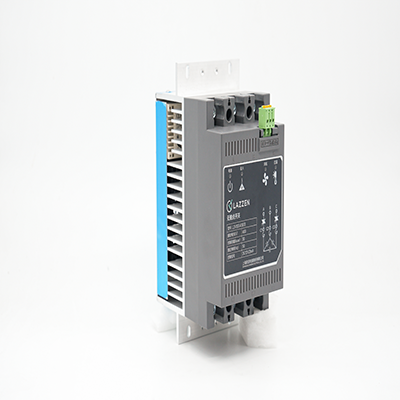

LZVS
The LZVS Thyristor Contactless Switching Module controls common compensation capacitors up to 60kVAR and split-phase compensation capacitors up to 40kVAR. Driven by a 12V signal, it achieves a response time as fast as 20ms, operates with zero arcing and no noise, and features an integrated temperature-controlled fan and 85°C over-temperature protection. A series reactor must be connected in harmonic scenarios. Ideal for high-frequency and frequent switching applications.
-
Rated Voltage: -15% to +20% -
Frequency Range: 45Hz to 65Hz -
Control Signal Voltage:
-12V±20%/2mA
or +12V±20%/2mA -
Primary Response Time (All Models): <20mS -
Secondary Response Time (All Models): <80mS
