Hospital Solutions
Empowering Hospital Digital Transformation to Safeguard Patient Power Safety Lifeline!
Smart Power Distribution, Protecting Lives
LAZZEN integrates cutting-edge technologies such as IoT, Digital Twin, and AI to enhance the intelligence level of hospital power distribution systems. With stable and reliable power supply and efficient O&M as core values, we provide one-stop sm
-
Industry Challenge 01
Reliance on Manual Work, Lack of Effective Digital Means
Reliance on manual inspections and meter readings prevents real-time monitoring. Systems (e.g., power distribution monitoring, energy monitoring, environment monitoring) are isolated and dispersed, hindering efficient coordinated operation.
-
Industry Challenge 02
Predominantly Reactive Maintenance, Power Supply Continuity Hard to Guarantee
Sudden power outages are difficult to diagnose, equipment lifespan remains unknown, and predictive maintenance capabilities are lacking, leading to significant impact from unexpected outages.
-
Industry Challenge 03
High Power Quality Requirements for Precision Medical Instruments
Precision medical equipment is highly sensitive to power quality parameters such as voltage, frequency, and harmonics. Grid fluctuations or on-site interference can easily cause equipment malfunction, data loss, reduced accuracy, or imaging distortion.
-
Industry Challenge 04
Shortage of Professional Power O&M Personnel, Insufficient O&M Capability
There is a severe shortage of composite talents who understand both hospital facility management and power automation and data analysis, resulting in insufficient professional capabilities.
Scenario-Based Solutions
Discover How We Help Industry Leaders Embrace Digitalization and Accelerate Technology-Driven Innovation.
-
Intelligent Operation And Maintenance Solution For Power Distribution Rooms
-
Technical HighlightsThe PX Smart Distribution Expert enables monitoring of power distribution equipment operation, dynamic spatial environment changes, access control, and video surveillance, while integrating photovoltaic green energy and carbon emission data to break down information silos across multiple systems.
Intelligent IoT circuit breakers provide comprehensive sensing of electrical faults, enabling fault预警 and precise fault type differentiation; smart circuit breakers come with built-in lifecycle management for digital asset management and predictive maintenance; the application of local monitoring and mobile O&M apps significantly improves response time.
-
Core ValueAchieving data-driven operation of power distribution equipment, refined management, and visualized maintenance; flexible multi-point O&M via on-site, local, and mobile platforms, with proactive alerts, fault location, and analysis, transforming hospital power system O&M from "reactive repair" to "proactive defense," enhancing the reliability and continuity of medical building power supply, ensuring "zero" power interruption to safeguard critical lifelines while improving O&M efficiency, ultimately enabling reduced or unmanned operation of power distribution rooms.
-
-
Operating Room Power Distribution Protection Solution
-
Technical Highlights
Dual Power Source: Dedicated PC-level dual power supply for excitation drive, with a minimum transfer time of ≤100mS.
Miniature Circuit Breaker: Single-magnetic miniature circuit breaker with overload non-tripping function; Electromagnetic Type A miniature residual current circuit breaker provides protection against AC residual current and pulsating DC residual current.
-
Complies with Clause 3.02 of JGJ312-2013 "Code for Electrical Design of Medical Buildings" regarding backup power switching time, requiring ≤500mS for Class 2 medical locations (e.g., operating rooms, ICUs); Clause 5.4.1 requiring short-circuit protection on both primary and secondary sides of the medical IT system isolation transformer without overload protection for power disconnection; Clause 9.3.7 requiring Type A or B residual current protective devices for Class 1 and Class 2 locations; and Clause 9.4.3 requiring electromagnetic-type residual current protective devices for TN systems in Class 2 medical locations.
-
Related Products
-
NDW3
The NDW3 Series Air Circuit Breaker (hereinafter referred to as the breaker) is designed for power distribution networks with AC 50Hz/60Hz, rated current from 200A to 7500A, rated insulation voltage of 1000/1250V, and rated operating voltages of AC220V/230V/240V, AC380V/400V/415V, AC440V/480V, AC660V/690V, AC800V, AC1000V, AC1140V, AC1380V, and AC1
-
NDM3DE
NDM3DE Series Intelligent MCCB: Designed for 50Hz/60Hz AC, AC380V to AC415V, 32A to 630A for infrequent switching. Features overload, short-circuit, short-time delay short-circuit, and undervoltage protection. Provides meter-grade feedback on current, voltage, power, energy, and lifespan for load monitoring, reducing O&M costs and enabling futu
-
SEA Smart Digital Cabinet
The SEA Smart Digital Cabinet is designed for low-voltage power distribution systems with AC 50Hz, rated insulation voltage AC690V, operating voltage up to AC400V, and rated current up to 4000A. It is suitable for incoming power, feeder, bus coupler, lighting, and motor load control applications. Equipped with LAZZEN MagicLink Power intelligent pow
-

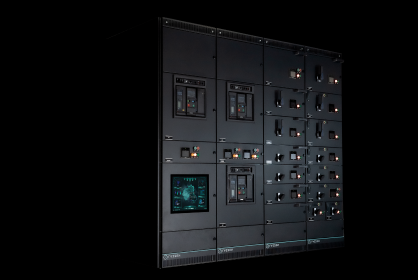

NEA Smart Digital Cabinet
The NEA series low-voltage switchgear is designed for AC 50Hz power systems with a rated insulation voltage of AC1000V, operating voltage up to AC400V, and rated current up to 6300A. It is suitable for incoming, feeder, bus coupler, lighting, and motor load control applications in low-voltage distribution systems. Featuring standardized and modular
-
NEA E Low-Voltage Distribution Cabinet
The NEA E series low-voltage switchgear is designed for AC 50Hz systems with a rated insulation voltage of 690V, operating voltage up to AC400V, and rated current up to 630A. It is suitable for low-voltage power distribution systems, enabling feeder, lighting, and motor load control. Featuring standardized and modular functional unit design, along
-
PX Distribution Expert
PX Distribution Expert is an enterprise-grade distribution and energy operation management platform that deeply integrates IoT technology with data analytics. Centered on "breaking data silos," it enables unified access and panoramic visualization of the entire chain of medium and low-voltage distribution system equipment, driving the distribution
-
NDB1TS-63
NDB1TS-63 Series Circuit Breakers For Low-Voltage Terminal Power Distribution In Industrial, Commercial Building, Energy, Telecommunications, And Infrastructure Sectors, Providing Short-Circuit Protection And Isolation Functions.
-
NDQ3HP
NDQ3HP Series Dual Bypass Automatic Transfer Switching Equipment This Product Is Designed For Data Centers, Hospitals, Financial Centers, Industrial Plants, Airports, Rail Transit, Communication Stations, And Other Locations Where Continuous Power Supply Is Required During Testing And Maintenance Inspection Of Automatic Transfer Switching Equipment
-
NDB2LM-40
The NDB2LM-40 Series Residual Current Operated Circuit Breaker (RCBO) Is Designed For Household And Similar Applications, As Well As For Locations Requiring High Sensitivity, Including Laboratories, Service Industries, And Small Industrial Sites. It Simultaneously Disconnects The Phase And Neutral Conductors, With The Neutral Conductor Providing No
-
NDB2LM-63
Primarily applicable for short-circuit, overload, leakage, and isolation protection in low-voltage terminal distribution systems in industries, residential buildings, energy, telecommunications, and infrastructure, with rated voltages of AC230/240V and AC400/415V at 50/60Hz. Provides personal protection against indirect contact, supplementary perso
-
NDB2TS-63
The NDB2TS-63 Series Circuit Breaker Is Designed For Low-Voltage Terminal Power Distribution In Industrial, Commercial Building, Energy, Telecommunications, And Infrastructure Sectors. It Provides Short-Circuit Protection, Control, Isolation, And DC System Protection.
-
NDB5E-40/80
The NDB5E-40 and NDB5E-80 IoT Miniature Circuit Breakers are intelligent devices featuring automatic opening and closing, over/under voltage protection, residual current protection, energy metering, temperature monitoring, overload time-delay protection, scheduled switching, power limiting, and three-phase unbalance protection. They enable communic
-
NDM5E
NDM5E Series Electronic Molded Case Circuit Breaker (hereinafter referred to as the circuit breaker) is suitable for AC 50/60Hz, with a rated operating voltage up to AC690V and a rated operating current up to 1600A. It is designed for infrequent switching in circuits and provides functions including long-time delay, short-circuit short-time delay,
