Energy Storage Solutions

Ensuring Safe Charging and Discharging of Energy Storage to Support Clean Energy and Accelerate Carbon Neutrality.

Comprehensive Energy Storage, Robust Protection

LAZZEN provides the industry's most comprehensive system solutions for energy storage, tailored to the distinct characteristics of generation-side, grid-side, and user-side systems. Addressing industry pain points such as DC breaking in battery

Industry Challenge 01

DC Safety Challenge

The AC and DC coupling schemes for energy storage systems are complex. Ensuring consistency across millions of highly integrated battery cells is difficult, increasing the risk of DC faults.
Industry Challenge 02

Equipment Miniaturization Requirements

With the iterative advancement of battery cells and power device technologies, equipment power density increases. The miniaturized cabinet design imposes stricter requirements on the physical dimensions of switches.
Industry Challenge 03

Seamless Grid-Tied to Off-Grid Transition for Sensitive Loads

During the transition from grid-tied to off-grid operation in residential and commercial & industrial storage, slow switching speeds can cause excessive power loss duration for electronic devices and sensitive loads, leading to unexpected shutdowns.

Scenario-Based Solutions

Discover How We Help Industry Leaders Embrace Digitalization and Accelerate Technology-Driven Innovation.

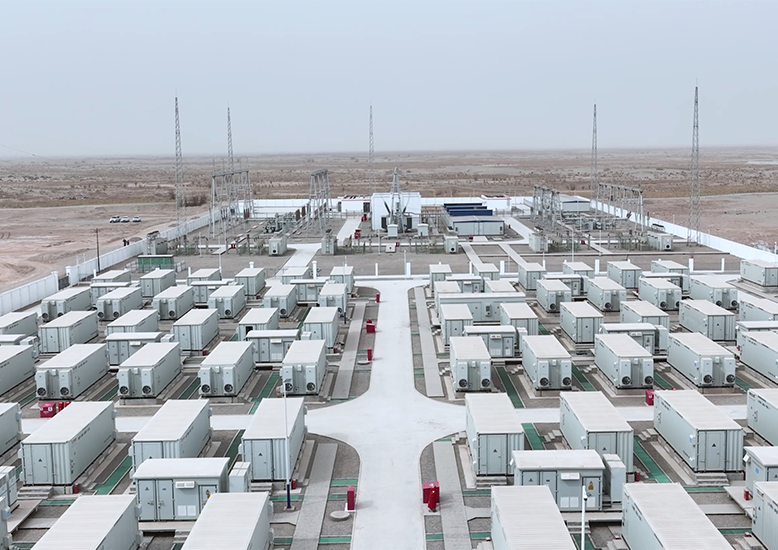

Centralized Energy Storage Solution
- Technical Highlights

  The NDG3GVH-M Series remote-controlled disconnector provides a visible safety isolation point while enabling remote on/off control of the high-voltage cabinet, integrating isolation and remote control functions into one unit to significantly enhance component density. The NDW2GZ Series DC disconnector achieves an ultra-high short-circuit withstand capability of 160kA/200ms, ensuring safe and stable operation without failure before fuse protection activates, and is suitable for 6.9MWh battery cabin busbar cabinet applications.

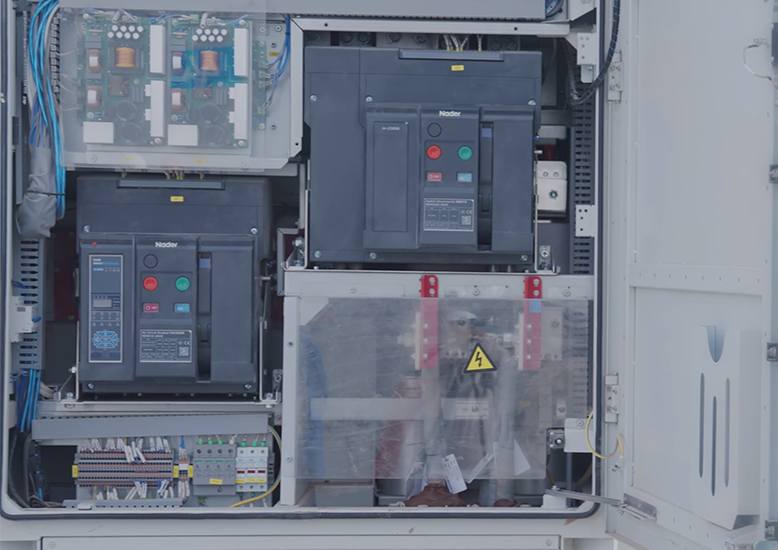

Commercial & Industrial Energy Storage Solution
- Technical Highlights

  The NDM3Z-250VM enhances the single-pole contact breaking voltage, achieving a compact DC1000V/2P structure, suitable for the miniaturized installation requirements of commercial and industrial storage high-voltage cabinets and PCS integrated solutions. The NDM3 offers a breaking capacity of ≥35kA, with 100% non-derating for both forward and reverse feed. Its double-insulation cover design ensures enhanced safety protection.
Residential Energy Storage Solution
- Technical Highlights

  The NDB2F-100E On-Grid/Off-Grid Fast Transfer Circuit Breaker for residential energy storage achieves a total transfer time (including arc extinction) of 15ms through optimized trip mechanism design, enabling seamless and smooth power supply switching for residential energy storage systems during unexpected grid outages. The NDB3-125 DC Miniature Circuit Breaker employs an oil-damped trip mechanism to eliminate temperature drift effects on thermal sensing elements, ensuring precise identification and protection.
